    AC110 / 220V Modular Led Screen , P10 Truck Mounted Led Screen Stable Operation

    Ask Lasest Price
    Brand Name : Singheng
    Model Number : P10
    Price : USD+To be negotiated+square meter
    Certification : CE RoHS UL Certifications
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000+square meter+per month
    Delivery Time : About 16 days
    • Product Details
    • Company Profile

    AC110 / 220V Modular Led Screen , P10 Truck Mounted Led Screen Stable Operation

    P10mm Full Color Commercial Advertising Mobile Led Advertising Billboard


    • Product description

    1. The screen’s design with full consideration of outdoor usage, which adopts industrial standard,high brightness design

    2. Our product possesses IP65 protection level, which enables display working for you under rainy days.

    3. Adopt high-quality LED light-emitting tube, the brightness is high,with large horizontal and vertical viewing angle.

    4. Using high-quality LED driver chip, the whole system can adapt to outdoor harsh environment and long-term stable operation.

    5. Application: digital advertising, concerts, mobile announcements, outdoor advertising fields


    • Technical parameter of P10 Outdoor Advertising LED

    P10 FULL-COLOR RENTAL DISPLAY TECHNICAL PARAMETER

    Item

    Parameter

    Pixel Pitch

    10 mm

    Pixel Density

    10000 dot/sqm

    Pixel Configuration

    1R1G1B SMD3535

    Module Size

    320*160 mm

    LED brand

    R&G&B: EPISTAR

    Cabinet type

    closed

    Protection

    front:IP65

    Unit cabinet dimension

    640*640

    Module Resolution

    32*16 dot

    Cabinet Resolution

    64*64 dot

    Weight

    10KG/cabinet

    Cabinet Material

    Die-casting aluminium

    Viewing Distance

    ≥10 m

    Viewing Angle (Horizontal Axis)

    140°

    Viewing Angle (Vertical Axis)

    140°

    Refresh Rate

    >1920Hz

    Grey Scale

    65536

    Brightness

    ≥6000cd/m2

    Max Power Consumption

    600 w/sqm

    Average Power Consumption

    270 w/sqm

    Drive Mode

    1/4 Scan Constant Current

    Signal EMC

    VGA,DIV,HDMI,SDI

    Signal Transmission Mode

    568B

    Network Cable

    ≤100m, Multimode

    Control Distance

    optical fiber≤500m, Single mode optical

    fiber

    ≤20 kilometer

    Lifespan

    ≥10,0000 h

    Waterproof Grade

    Outdoor Use Only IP65

    Input Voltage

    AC220V±10% 50-60HZ

    Celsius

    Degree:—10℃-40℃

    humidity:10

    10—85%RH


    • FAQ


    Q1:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
    A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of
    pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the
    higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5,
    P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.


    Q2:What pixel pitch should I choose on my display?
    A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
    desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
    meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
    and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
    it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
    pixels for a full color display then have a standard effect.


    Q3:What about your quality?
    A:The quality of our display is excellent. We use the materials of high quality suppliers in the world,
    strictly control the production process, and pass the multiple quality inspection to ensure that every
    product is qualified.


    Q4:What about the warranty?

    A:Three year warranty


    Q5: To order a display ,What kind of information do I have to offer you?

    A:You should provide width/height of
    the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
    you with a detailed list of quotations. Sometimes you should also provide information such as display
    orientation, geographical location, local climate, and so on.

    Q6:How long is the transportation time?
    A:Shipping: 20-30 days,Airlift: within 3-7 days.

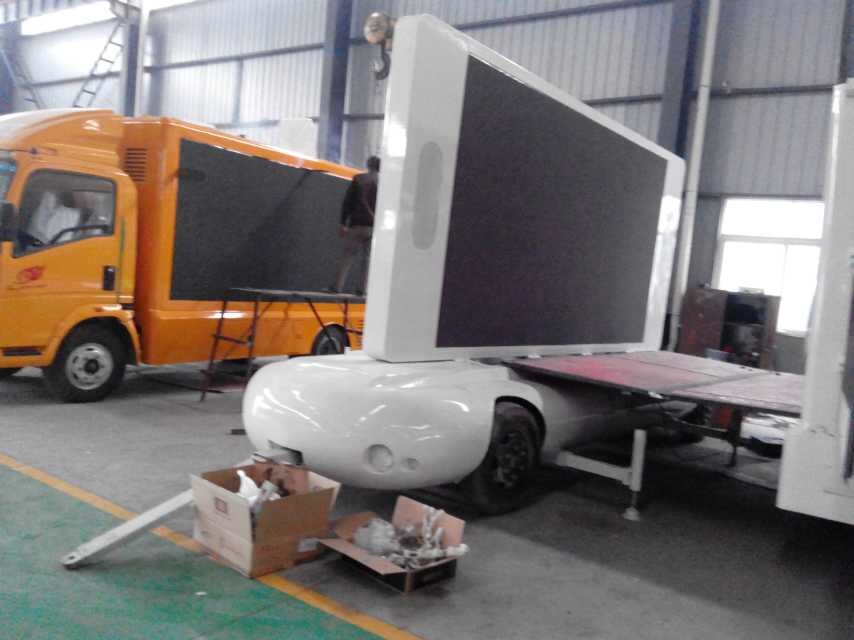

    • Product Picture
