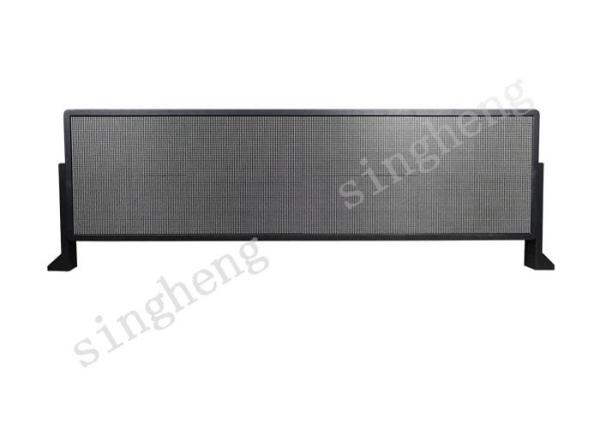

P5 Electronic Screen Bus Window Led Display Outdoor Advertising
Board
1. The bus LED display system is mainly composed of bus LED
display, wireless LED control card, and LED display control
software. With the city bus system, you can display vehicle
information, routes, and media information such as weather,
announcements, and advertisements.
2. It uses low-power, high-brightness, constant-current driving
lamp beads, which is extremely penetrating during daylight hours
and has a lifespan of more than 100,000 hours.
3. The multi-monitoring process is strictly carried out, and the
products need to be testing for more than 24 hours before leaving
factory.
4. Wireless communication ensures the real-time and update
convenience of information elements.
5. Wireless LED display, support flash, gif image and text format,
to broadcast commercial news, while broadcasting information
related to city life and headline news, etc.
6. The shell adopts integrated aluminum casting mold, which has
high strength and strong toughness.
7. Wireless communication ensures real-time monitoring of media
user monitoring and system operation.
8. It has 12-36V vehicle voltage, and the power supply has
over-current and over-voltage protection functions.
- Technical parameter of P6 Outdoor Digital LED
Item | P5 |
|---|
Pixel Pitch | 5 mm |
|---|
Pixel Density | 40000dot/sqm |
|---|
Pixel Configuration | 1R1G1B SMD3528 |
|---|
Module Size | 320*160 mm |
|---|
LED brand | Taiwai EPISTAR |
|---|
Cabinet type | Open |
|---|
Cabinet Material | SPCC |
|---|
Module Resolution | 64*32 dot |
|---|
Weight | 25KG/sqm |
|---|
Viewing Distance | ≥5 m |
|---|
Grey Scale | 65536 |
|---|
Brightness | ≥1000cd/m3 |
|---|
Power supply | DC9-36V |
|---|
Cabinet Resolution | 256*64 |
|---|
Dimension | 1320*360*75mm |
|---|
Control method | wireless/usb |
|---|
Drive Mode | 1/16 Scant |
|---|
Q1: To order a display ,What kind of information do I have to offer
you?
A:You should provide width/height of
the display, the main use, the viewing distance, the scene photos,
special requirements,then I can provide
you with a detailed list of quotations. Sometimes you should also
provide information such as display
orientation, geographical location, local climate, and so on.
Q2:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance and wiring diagram,
free remote debugging. We can also send our engineers to the site
to guide the installation.
Q3:LED display models are generally expressed in PX, such as P2 P3
P4.....P8, P10, what does this mean?
A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm
4mm....8mm,10mm, which determines the number of
pixels per unit area of a display, so it represents the clarity of
the display.The smaller the pitch, the
higher the clarity. Usually, the models of indoor full color
display are: P1.667, P1.875, P2.5, P3, P4, P5,
P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8,
P10, P16, P20, P25, P31.25 etc.
Q4:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing
distance, the size of the display screen, the
desired effect and the customer budget. It is generally believed
that P5 is suitable for watching outside 5
meters, P10 is suitable for watching outside 10 meters, and P16 is
suitable for watching outside 16 meters,
and the other is the same. Of course, this data is not very
accurate, and the customer just can refer to
it. It also depends on the size of the screen, generally it is
considered that more than 100 thousand
pixels for a full color display then have a standard effect.
Q5:What about your quality?
A:The quality of our display is excellent. We use the materials of
high quality suppliers in the world,
strictly control the production process, and pass the multiple
quality inspection to ensure that every
product is qualified.
Q6:Is it OK to print my logo on your product?
A:Yes,We support OEM and ODM services .
Q7:How long is the transportation time?
A:Shipping: 20-30 days,Airlift: within 3-7 days.
