    Fashionable P4 Outdoor Pole LED Display Full Color Lamp Post LED Display

    Ask Lasest Price
    Brand Name : Singheng
    Model Number : P4
    Price : USD+to be negotiated+piece
    Certification : CE RoHS UL Certifications
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000+square meter+per month
    Delivery Time : About 16 days
    • Product Details
    • Company Profile

    Fashionable P4 Outdoor Pole LED Display Full Color Lamp Post LED Display

    Fashionable P4 Full Color Lamp Post Waterproof Outdoor Led Display


    • Product description

    1. High-strength anti-aging fabric,strong weather resistance, strong impact resistance

    2. Easy installation and maintenance design, greatly reducing the cost of loading,unloading and maintenance

    3. The driver IC adopts the constant current driver IC of the world's leading manufacturers, and has excellent driving performance, stable and reliable.

    4. With IP65 protection, it is suitable for outdoor use all day long without fear of bad weather.

    5. The LED lamp post display adopts the high-quality chip package of the world-famous manufacturers,waterproof three-in-one LED,providing customers multiple choices. At the same time, the display life and display quality are fully guaranteed.

    6. RGB deep gray processing, color changes arbitrarily.


    • Technical parameter of P4 Post LED Outdoor Display

    P4 FULL-COLOR TECHNICAL PARAMETER

    Item

    Parameter

    Pixel Pitch

    4mm

    Pixel Density

    62500 dot/sqm

    Pixel Configuration

    1R1G1B SMD EPISTAR

    Module Size

    192*360mm

    Module Resolution

    64*32
    dot

    Cabinet Size

    788*1480

    Weight

    35KG/m2

    Cabinet Material

    SPCC

    Viewing Distance

    ≥4 m

    Viewing Angle (Horizontal Axis)

    140°

    Viewing Angle (Vertical Axis)

    120°

    Refresh Rate

    >1920Hz

    Grey Scale

    65536

    Brightness

    ≥6500cd/m2

    Drive Mode

    1/8 Scan Constant Current

    Signal EMC

    VGA,DIV,HDMI,SDI

    Signal Transmission Mode

    568B

    Network Cable

    ≤100m, Multimode

    Control Distance

    optical fiber≤500m, Single mode optical

    fiber

    ≤20 kilometer

    Lifespan

    ≥10,0000 h

    Waterproof Grade

    IP65

    Input Voltage

    AC220V±10% 50-60HZ

    Celsius

    Degree:—10℃-40℃

    humidity:10

    10—85%RH


    • FAQ

    Q1:What pixel pitch should I choose on my display?
    A:Using the PX screen, it is determined mainly by the viewing distance, the size of the display screen, the
    desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5
    meters, P10 is suitable for watching outside 10 meters, and P16 is suitable for watching outside 16 meters,
    and the other is the same. Of course, this data is not very accurate, and the customer just can refer to
    it. It also depends on the size of the screen, generally it is considered that more than 100 thousand
    pixels for a full color display then have a standard effect.


    Q2: To order a display ,What kind of information do I have to offer you?

    A:You should provide width/height of
    the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide
    you with a detailed list of quotations. Sometimes you should also provide information such as display
    orientation, geographical location, local climate, and so on.


    Q3:LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
    A: P2 P3 P4.....P8,P10 means that the pixel pitch is 2mm 3mm 4mm....8mm,10mm, which determines the number of
    pixels per unit area of a display, so it represents the clarity of the display.The smaller the pitch, the
    higher the clarity. Usually, the models of indoor full color display are: P1.667, P1.875, P2.5, P3, P4, P5,
    P6, P7.62, P10. Outdoor full color display are P4, P5, P6, P7, P8, P10, P16, P20, P25, P31.25 etc.


    Q4:Can I order a sample?
    A:Yes,We welcome customers to order samples to check the quality of our products and service.


    Q5:Is it OK to print my logo on your product?
    A:Yes,We support OEM and ODM services .


    Q6:What about the lead time?
    A:Orders less than 100 square meter display, lead time is 13-15 days.

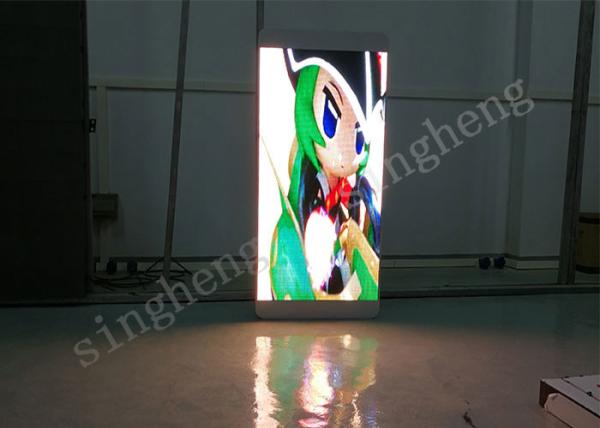

    • Product Picture

    Fashionable P4 Outdoor Pole LED Display Full Color Lamp Post LED Display
