    P10 SMD Waterproof Led Screen Cold Rolled Steel Plate Cabinat Materials

    Ask Lasest Price
    Brand Name : SingHeng
    Model Number : p10
    Certification : CE ROHS UL
    Price : USD 275~333 per square meter
    Payment Terms : L/C, D/A, T/T, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000 Square meters every month
    Delivery Time : 16 days
    • Product Details
    • Company Profile

    P10 SMD Waterproof Led Screen Cold Rolled Steel Plate Cabinat Materials

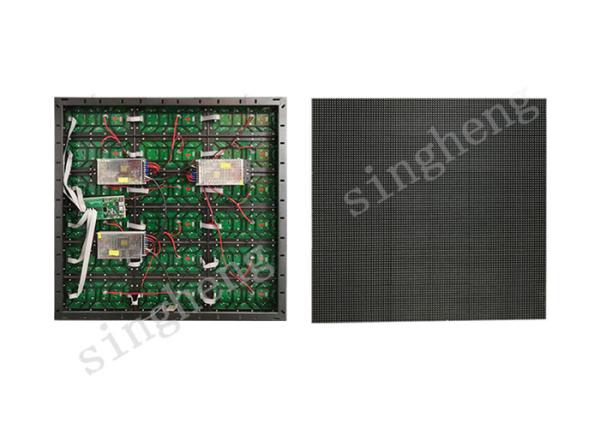

    P10 SMD Outdoor LED Advertising Screen P10 outdoor water proof led display

    • product description

    1.Complete series, customized to satiny any requirements of customers

    2.Support point correction function, ensure the consistency of the color and the brightness in the process of use.
    3.The brightness is high , can be over 6000 nits or higher , no problem at all even under direct sunlight
    4.Our cabinet is designed with back covers at rear side for better waterproof function . There are side locks , waterproof power and signal connectors for easy installation ,depends on customer choice.
    5.We have the most competitive prices based on all good material we use . Our quality is very repliable and we win very good reputation in the market .

    TECHNICAL PARAMETER

    ItemParameter
    Pixel Pitch10 mm
    Pixel Density10000 dot/sqm
    Pixel Configuration1R1G1B SMD3535
    Module Size320*160 mm
    LED brandR&G&B: EPISTAR
    Cabinet typeclosed
    Unit cabinet dimension960mm×960mm×100mm
    Module Resolution32*16 dot
    Cabinet Resolution96*96 dot
    Weight36KG
    Cabinet MaterialSPCC
    Viewing Distance≥10 m
    Viewing Angle (Horizontal Axis)160°
    Viewing Angle (Vertical Axis)160°
    Refresh Rate>1920Hz
    Grey Scale65536
    Brightness≥7500cd/m2
    Max Power Consumption750 w/sqm
    Average Power Consumption350 w/sqm
    Drive Mode1/2 Scan Constant Current
    Signal EMCVGA,DVE,
    Signal Transmission Mode568B
    Network Cable≤100m, Multimode
    Control Distanceoptical fiber≤500m, Single mode optical
    fiber≤20 kilometer
    Lifespan≥10,0000 h
    Waterproof GradeOutdoor Use IP65
    Input VoltageAC220V±10% 50-60HZ
    CelsiusDegree:—10℃-40℃
    humidity:1010—85%RH



    Application
    1.Outdoor full-color led display media is widely used in public places, advertising, urban road networks, urban parking lots, railways, subways and other traffic guidance systems, highways, etc.
    2.Outdoor LED display screens are widely used in finance, taxation, industry and commerce, post and telecommunications, sports, advertising, factories and mines, transportation, education systems, stations, terminals, airports, shopping malls, hospitals, hotels, banks, securities markets, construction markets, Auction houses, industrial enterprise management and other public places

    Delivery date

    Quantity(Square Meters)1 - 5051-100101 - 200>200
    Est. Time(day)162028To be negotiated
