Indoor Advertising LED Display Screen P2.5 Full Color LED Wall
Display Price
1. Complete series, customized to satiny any requirements of
customers
2. With the professional aviation plug as the connectors ensure the
quality and safety.
3. With the high quality raw material, mature process and scale
production,the quality is ensured.
4. HD LED Display Leader, very mature product. Initial creator for
such panels. Super slim, light weight, can meet the most demanding
requirements.
5. LED Display Module, Excellent Display Effect LED Display
,Broadcast color gamut, intelligent adjustment for color
temperature and brightness. Uniform color, high contrast, the
picture is vivid and Nature.

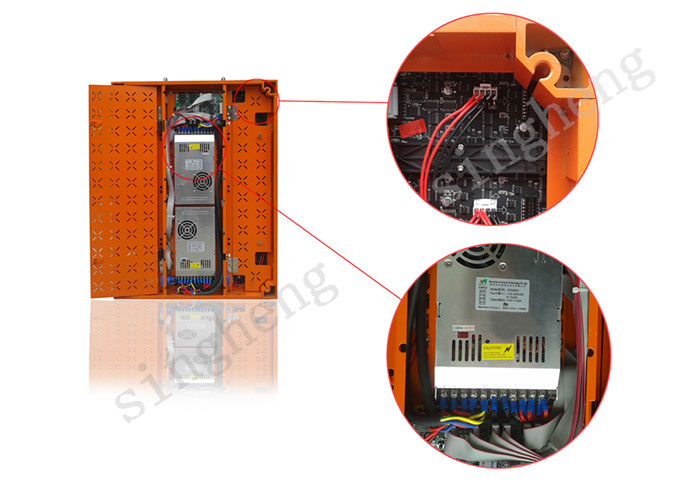

6. Firm, Flat and Backup Solution which gurantees screen in firm
shape. Power supplier and control system, backup solution is
available to gurantee. Camera optical, LAN cable, 3G,WIFI,
Multi-control ,ethernet for data transmittance options.
7. Ideal for indoor advertising media, government& enterprise
project culture & tourism, sports, propaganda Image, commercial
real estate.
- Technical Prameters of Full Color LED Wall
| Pixel pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD2121 black |
| Size of module | 160mm x 160mm |
| Resolution of module | 64x64 |
| Size of cabinet | 480mm x 640mm |
| Resolution of cabinet | 192x256 |
| Material of Cabinet | Die-casting Aluminum |
Weight of Cabinet | 9KG |
| Brightness | >1200cd/sqm |
| Density | 160000dots/sqm |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 2-30M |
| Maximum power consumption | 1200W/sqm |
| Average power consumption | 640W/sqm |
| Driving method | 1/32 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >3000Hz |
| IP grade | IP30 |
| Life Span | 100,000 hours |
Effectivce Communication
Distance(without relay) | Unshielded twisted pair net line transmission distance:100M, max
transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM |
Q1:LED display models are generally expressed in PX, such as P2 P3
P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm
10mm,which determines the number of pixels per unit area of a
display. So it represents the clarity of the display. The smaller
the pitch, the higher the clarity. Usually, the models of indoor
full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color
display are P4,P5,P6,P8,P10.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing
distance, the size of the screen, the desired effect and the
customer budget. It is generally believed that P5 is suitable for
watching outside 5 meters. P10 is suitable for watching outside 10
meters. Of course, this data is not very accurate, and the customer
can just refer to it. It also depends on the size of the screen,
generally it is considered that more than 100 thousand pixels for a
full color display then have a standard effect.
Q3: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main
usage, the viewing distance, the scene photo and special
requirements, then I can provide you a quotation. Sometimes you
should also provide information such as geographical location,
local climate.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance, wiring diagram and free remote debugging .We
can also send our engineers to the site to guide the installation.
Q5:How about your quality?
A:The quality of our display is excellent. We use the materials of
high quality suppliers, strictly control the production process.
and pass the multiple quality inspection to ensure every product is
qualified.
