Waterproof Advertising LED Curtain Screen P20 AC110 / 220V Input Voltage

Ask Lasest Price
Brand Name :	Singheng
Model Number :	P20
Price :	USD+To be negotiated+square meter
Certification :	CE RoHS UL FCC
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000+square meter+per month
Delivery Time :	About 16 days

Add to Cart

Product Details
Company Profile

Waterproof Advertising LED Curtain Screen P20 AC110 / 220V Input Voltage

P20 Waterproof Display Curtain Wall LED Mesh Screen Outdoor Advertising Wall

Product description

1. Easy to install and easy to maintain. It is installed without steel structure and does not require air conditioning.

2. LED curtain screen is a kind of LED screen composed of light bars, also called LED light bar screen. Mainly used in outdoor walls, glass curtain walls, building tops and other fields.

3. High performance and low power consumption. The real energy saving comes from: high-brightness, high-efficiency LED lights, high conversion efficiency power supplies.

4. Highly integrated. Built-in power supply and receiving card, each unit can work independently; power and signal are plugged in one line.

5. It is suitable for the construction of super large outdoor display, which is the first choice for creating landmark dynamic display landscape.

6. Also known as LED light bar screen, LED grid screen, LED glass curtain wall display, LED strip screen, LED shaped screen.

Technical parameter of P20 Outdoor Digital LED

Technical parameters

Pixel Pitch	20 mm
Pixel Density	2500dot/sqm
Pixel Configuration	2R1G1B DIP346
Module Size	320*160 mm
Module Resolution	16*8 dot
Cabinet Resolution	12*56 dot
Cabinet Size	960*1120 mm
Cabinet Material	SPCC
Viewing Distance	≥20 m
Viewing Angle (Horizontal Axis)	120°
Viewing Angle (Vertical Axis)	80°
Refresh Rate	>600Hz
Grey Scale	65536
Brightness	≥7500cd/sqm
Max Power Consumption	700 w/sqm
Average Power Consumption	250 w/sqm
Drive Mode	static
Signal EMC	VGA,DIV,HDMI,SDI
Signal Transmission Mode	568B
Network Cable	≤100m, Multimode
Control Distance	optical fiber≤500m, Single mode optical
Lifespan	≥10,0000 h
Input Voltage	AC220V±10% 50-60HZ
Celsius	Degree:—10℃-40℃

FAQ

Q1:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.

Q2: To order a display, what information should l offer you?
A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.

Q3:How to install?
A:Free of charge to provide detailed steel structure drawings and installation guidance, wiring diagram and free remote debugging .We can also send our engineers to the site to guide the installation.

Q4:What about the lead time?
A:Orders less than 50 square meters display ,lead time is 16 days.

Q5:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.

Q6:What about the warranty?
A:Three year warranty

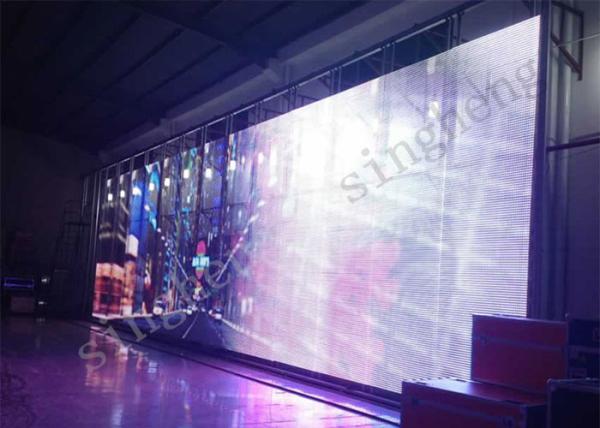

Product Picture
