Football Stadium Advertising Boards Sports Perimeter Led Display
P10 Perimeter Banner

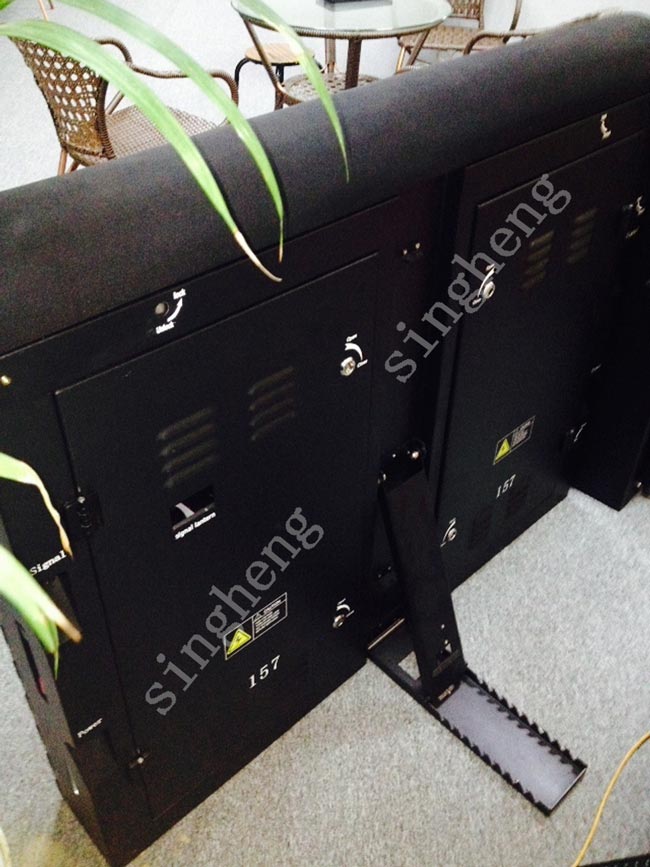

1. The sports perimeter Led display cabinet has good moisture and
corrosion resistance and can be used in different climate regions
around the world. It can be used in temperatures ranging from -30
°C to 60 °C, even in high humidity and high salinity air
environments.
2. A hemispherical soft protective cover and a soft mask are
installed above and on the front of the screen to provide a good
safety guarantee for the athletes and LED lights.
3. The new cabinet design meets the fence and stacking
installation. It can be used in different applications for various
occasions, can meet the needs of users with multiple applications.
4. Inner fixed reinforcement plate, tensile and shockproof, auto
heat dissipation, make the operating life 10 years.
5. Football stadium advertising boards module, excellent display
effect,broadcast color gamut, intelligent adjustment for color
temperature and brightness. Uniform color, high contrast, the
picture is vivid and nature.
6. The brightness is high , can be over 6000 nits or higher , no
problem at all even under direct sunlight .
- Technical parameter of P10 Perimeter Banner
| Item | P10 |
| Pixel Pitch | 10 mm |
| Pixel Density | 10000dot/sqm |
| Pixel Configuration | 1R1G1B SMD3535 |
| Module Size | 320*160 mm |
| LED brand | Taiwai EPISTAR |
| Cabinet type | Closed |
| Module Resolution | 32*16 dot |
| Weight | 30KG/sqm |
| Cabinet Material | SPCC or magnesium alloy |
| Viewing Distance | ≥10 m |
| Viewing Angle (Horizontal) | 140° |
| Viewing Angle (Vertical) | 120° |
| Refresh Rate | ＞1920Hz |
| Grey Scale | 65536 |
| Brightness | ≥6000cd/sqm |
| Max Power Consumption | 600 w/sqm |
| Average Power Consumption | 260 w/sqm |
| Drive Mode | 1/4 Scan |
| Lifespan | ≥100,000 hours |
| Waterproof Grade | IP65 |
| Input Voltage | AC105-235V 50-60HZ |
| Celsius | -40℃~40℃ |
| Humidity | 10~85%RH |
Q1:LED display models are generally expressed in PX, such as P2 P3
P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm
10mm,which determines the number of pixels per unit area of a
display. So it represents the clarity of the display. The smaller
the pitch, the higher the clarity. Usually, the models of indoor
full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color
display are P4,P5,P6,P8,P10.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing
distance, the size of the screen, the desired effect and the
customer budget. It is generally believed that P5 is suitable for
watching outside 5 meters. P10 is suitable for watching outside 10
meters. Of course, this data is not very accurate, and the customer
can just refer to it. It also depends on the size of the screen,
generally it is considered that more than 100 thousand pixels for a
full color display then have a standard effect.
Q3:What about the warranty?
A:Three year warranty.
Q9:Is it OK to print my LOGO on your product?
A:Yes.We support OEM and ODM service.
Q10:How long is the transportation time?
A:Shipping:20-30 days.Airlift:3-7 days.
