    Outdoor Stadium Perimeter LED Display 6mm Pixel Pitch SPCC / Magnesium Alloy Cabinet Material

    Ask Lasest Price
    Brand Name : Singheng
    Model Number : P6
    Price : USD+To be negotiated+piece | 5 Square Meter/Square Meters (Min. Order)
    Certification : CE RoHS UL FCC
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 3000+square meter+per month
    Delivery Time : About 16 days
    • Product Details
    • Company Profile

    Outdoor Stadium Perimeter LED Display 6mm Pixel Pitch SPCC / Magnesium Alloy Cabinet Material

    Football Stadium Perimeter Outdoor Display Outdoor P6 Screen LED Banners


    • Product description

    1. The cabinet has good moisture and corrosion resistance and can be used in different climate regions around the world. It can be used in temperatures ranging from -30 °C to 60 °C, even in high humidity and high salinity air environments.

    2. Waterproof grade is IP65 so that the display will continue to work for you in rainy weather.

    3. The integrated design provides a comprehensive solution for stadium LED display applications.

    4. A hemispherical soft protective cover and a soft mask are installed above and on the front of the screen to provide a good safety guarantee for the athletes and LED lights.

    5. The new cabinet design meets the fence and stacking installation. It can be used in different applications for various occasions, can meet the needs of users with multiple applications.

    6. The cabinet adopts a triangular door and a unique tilt angle design. Our stadium screen can adjust the tilt angle (60°~90°) of the cabinet according to different requirements, so that all the audience can see the displaying content.


    • Technical parameter of P6 Stadium LED Display

    ItemP6P10
    Pixel Pitch6mm10 mm
    Pixel Density27777dot/sqm10000dot/sqm
    Pixel Configuration1R1G1B SMD35351R1G1B SMD3535
    Module Size192*192 mm320*160 mm
    LED brandTaiwai EPISTARTaiwai EPISTAR
    Cabinet typeClosedClosed
    Module Resolution32*32 dot32*16 dot
    Weight35KG/sqm30KG/sqm
    Cabinet MaterialSPCC or magnesium alloySPCC or magnesium alloy
    Viewing Distance≥6 m≥10 m
    Viewing Angle (Horizontal)140°140°
    Viewing Angle (Vertical)120°120°
    Refresh Rate>1920Hz>1920Hz
    Grey Scale6553665536
    Brightness≥6500cd/m2≥6000cd/m2
    Max Power Consumption850 w/sqm600 w/sqm
    Average Power Consumption370 w/sqm260 w/sqm
    Drive Mode1/8 Scant1/4 Scant
    Lifespan≥10,0000 h≥10,0000 h
    Waterproof GradeIP65IP65
    Input VoltageAC105-235V 50-60HZAC105-235V 50-60HZ
    Celsius—40℃-40℃—40℃-40℃
    humidity10—85%RH10—85%RH

    • FAQ

    Q1: To order a display, what information should l offer you?
    A:You should provide width and height of the display, the main usage, the viewing distance, the scene photo and special requirements, then I can provide you a quotation. Sometimes you should also provide information such as geographical location, local climate.


    Q2:LED display models are generally expressed in PX, such as P2 P3 P4....P8 P10.What does this mean?
    A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm 10mm,which determines the number of pixels per unit area of a display. So it represents the clarity of the display. The smaller the pitch, the higher the clarity. Usually, the models of indoor full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color display are P4,P5,P6,P8,P10


    Q3:What pixel pitch should I choose on my display?
    A:Using the PX screen, it is determined mainly by the viewing distance, the size of the screen, the desired effect and the customer budget. It is generally believed that P5 is suitable for watching outside 5 meters. P10 is suitable for watching outside 10 meters. Of course, this data is not very accurate, and the customer can just refer to it. It also depends on the size of the screen, generally it is considered that more than 100 thousand pixels for a full color display then have a standard effect.


    Q4:Can I order a sample?
    A:Yes.We welcome customers to order sample to check the quality and service.


    Q5:How long is the transportation time?
    A:Shipping:20-30 days.Airlift:3-7 days


    Q6:What about the warranty?
    A:Three year warranty

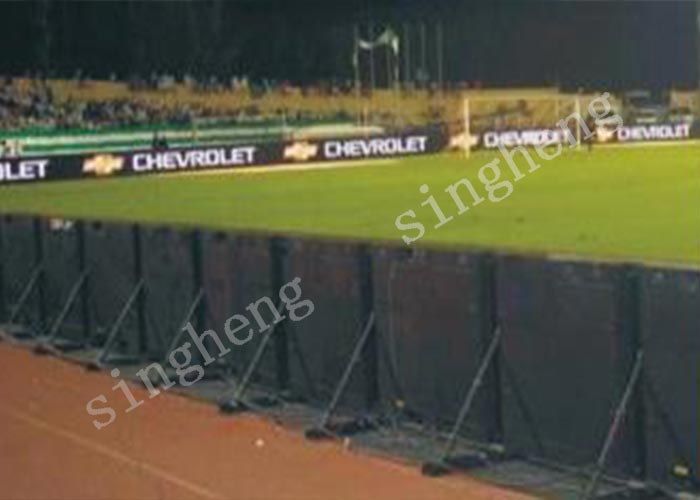

    • ​Product Picture

    Quality Outdoor Stadium Perimeter LED Display 6mm Pixel Pitch SPCC / Magnesium Alloy Cabinet Material for sale
