Led Panel Rental Led Display Screen Hire P2.97 Indoor Led Screen
Hire

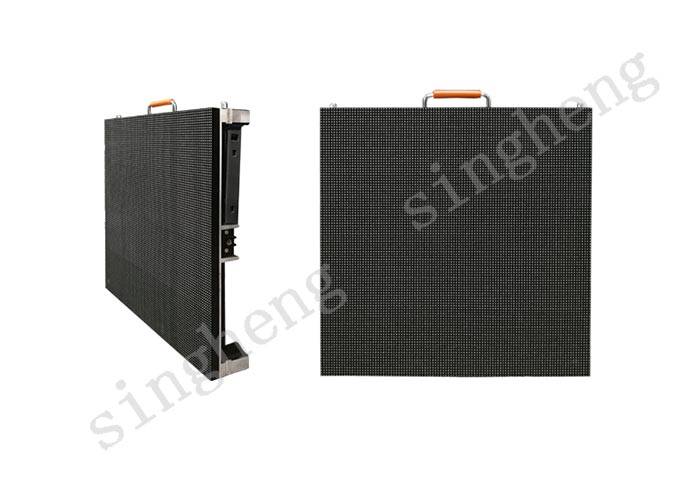

1. The Led panel rental cabinet is light and thin, can be quickly
installed, removed and transported, and is suitable for large-area
rental applications.
2. It adopts synchronous control system processing and can accept
various video input signals such as DVI, VGA and HDMI.
3. Video, graphics,other programs and various information can be
played in real-time, synchronous and clear information
dissemination.
4. New structural design is to meet hanging installation and floor
installation requirements and can be installed in indoor and
outdoor environment
5. The cabinets are connected by quick lock. The installation of
one cabinet can be completed in 10 seconds.
6. With high strength and hardness, good heat dissipation
7. The Led display screen hire cabinet is light in weight,low
installation cost and low power consumption, saving operating costs
and reducing labor costs.
Unit Module | Item | Parameter |
| Model Number | P2.97-28S |
| Module size | 250mm*250mm |
| Pixel pitch | 2.97mm |
| Pixels Density | 112896 dots/sqm |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2121 |
| Pixel resolution | 84dots(W)*84 dots(H) |
| Max Power | 32W |
| Module thickness | 14.66mm(without magnet) |
| 26.55mm(within magnet) |
| Weight | 0.573kg |
| Drive type | Constant drive |
| Scan mode | 1/28scan |
| Port type | HUB75-A |
| Brightness of white balance | ≥1200cd/m2 |
LED Cabinet | Dimension | 500mm*500mm |
| Monomer Module Number | 4 |
| Power supply | 5V/40A*1pcs |
| Thermal discharge | fan 1pcs |
| Pixel per cabinet | 168*168 |
| Best viewing distance | 3M～20M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+80℃ working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Weight | 7.5kg |
| Thickness | 65mm |
Q1:LED display models are generally expressed in PX, such as P2 P3
P4....P8 P10.What does this mean?
A: P2 P3 P4.....P8 P10 means the pixel pitch is 2mm 3mm 4mm....8mm
10mm,which determines the number of pixels per unit area of a
display. So it represents the clarity of the display. The smaller
the pitch, the higher the clarity. Usually, the models of indoor
full color display are P1.875,P2.5,P3,P4,P5. Outdoor full color
display are P4,P5,P6,P8,P10.
Q2:What pixel pitch should I choose on my display?
A:Using the PX screen, it is determined mainly by the viewing
distance, the size of the screen, the desired effect and the
customer budget. It is generally believed that P5 is suitable for
watching outside 5 meters. P10 is suitable for watching outside 10
meters. Of course, this data is not very accurate, and the customer
can just refer to it. It also depends on the size of the screen,
generally it is considered that more than 100 thousand pixels for a
full color display then have a standard effect.
Q4:How to install?
A:Free of charge to provide detailed steel structure drawings and
installation guidance, wiring diagram and free remote debugging .We
can also send our engineers to the site to guide the installation.
Q5:How about your quality?
A:The quality of our display is excellent. We use the materials of
high quality suppliers, strictly control the production process.
and pass the multiple quality inspection to ensure every product is
qualified.
Q6:What about the warranty?
A:Three year warranty
